SMB-T009
433MHz hopping code
encrypted transmission
Remote Distance (open space) 100M
(fit with SMR-W004 or SMR-W007）
Come with 12V 23A battery

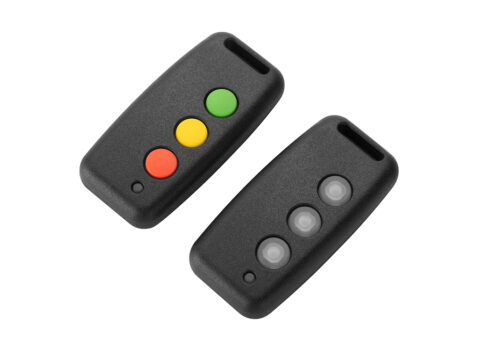

Three-button Hopping Code Remote controller
433 hopping code encrypted transmission with high security anti-copy function
Universal remote controller, can match any 433MHz receiver.
3 channels
Code transfer is rolling
Splash-proof
Hidden buttons, Anti-false activating design.
2 additional soldering point for easily connecting with any wired device to be wireless version.
Choice of transparent or colored buttons (both included)
When the hand-held transmitter is held down, the relay remains switched
With optical indication
Features recessed buttons to limit false activation
Transmission range in open area is 100 meters (within buildings 30 meters)
Operating Volt 7-13V DC
Operating Current
(Activated) <20mA @12V (press button）
(Static） <1uA @12V (No button press）
Frequency 433.92MHz
Number of buttons: 3
Battery Specification: 12V 23A (included)
LED Status ON/FLASH （When press/when press and battery<9.5V)
Wireless transmit power <20dBm
Size 67*32.6*15.2mm
Weight 25g
