SMM-T335T
SMM-T335T
IP67 water-proof manual call point
Triple poles change-over switches
12-24VDC input
30VDC 3A output
11 screw terminals

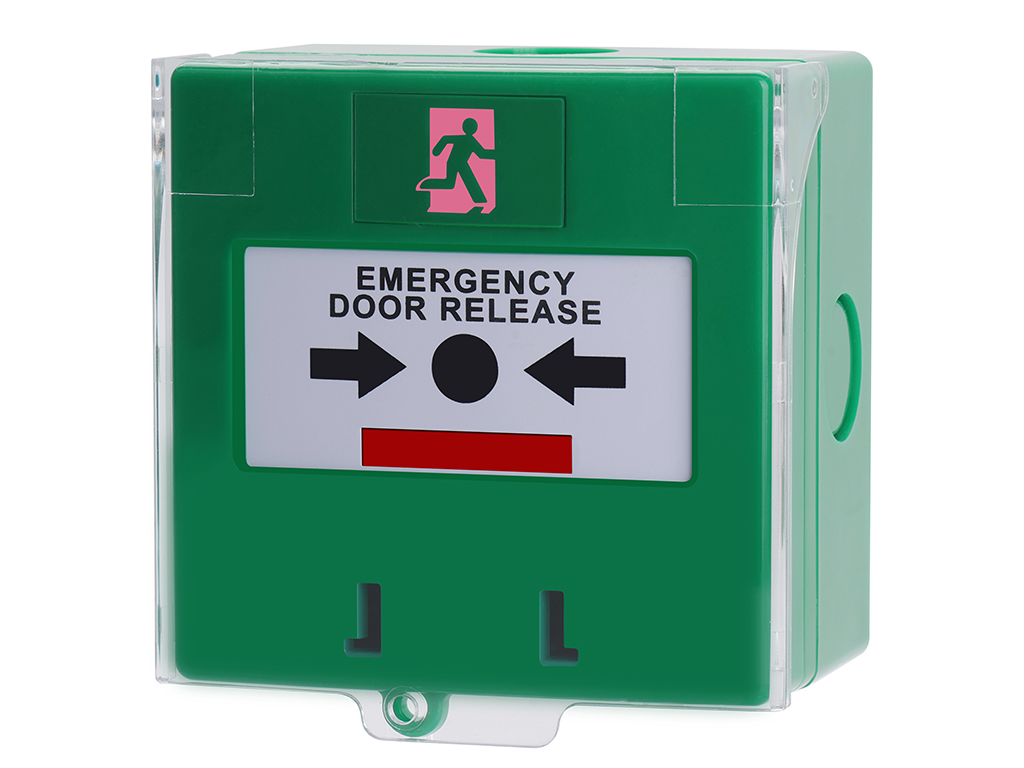

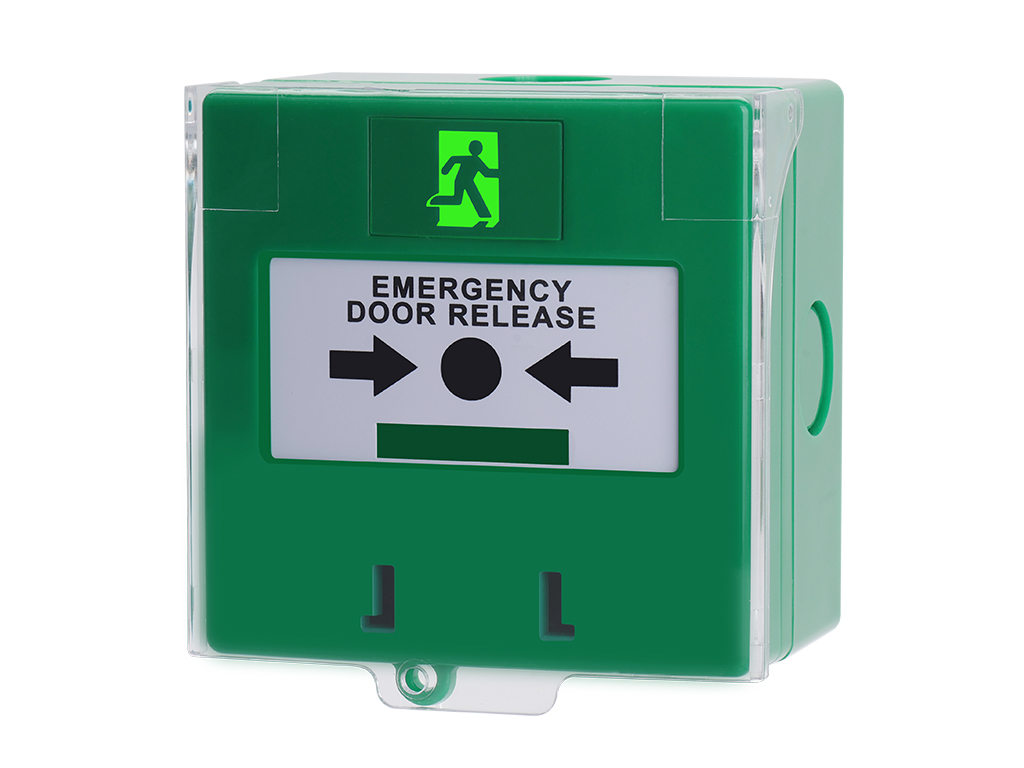

Waterproof manual call point designed for outdoor applications or areas where water intrusion or high humidity is an issue. Clear illuminated display with running man pattern, has a visible green and red illumination to indicate standby and alarm status, visible from up to 20 meters away. The front reset design, alarm status and combined LED display allows easy reset after activation.
Key feature
– IP67 waterproof resettable manual call point with illumination and protective cover.
– With green and red LED illumination and running man pattern
– OEM symbol available if required.
– Green and red color display for standby and alarm status
– With a strong key for easy reset and maintenance
– With a polycarbonate hinged transparent cover.

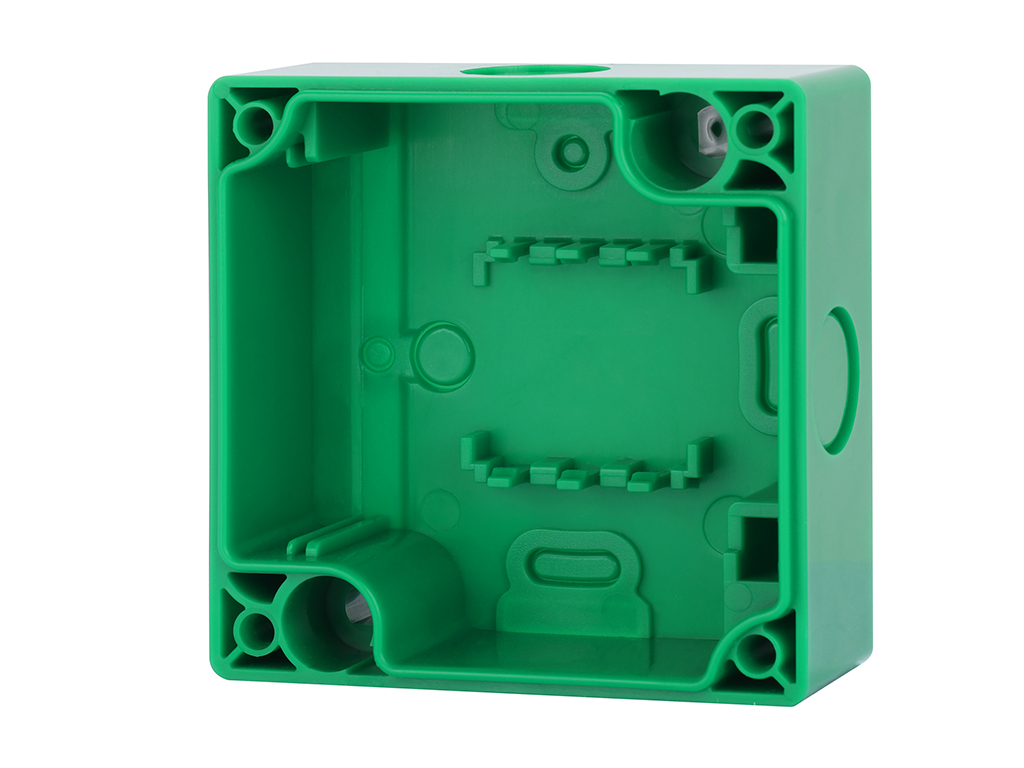

– With waterproof electric back box and 3 blind holes for PG13.5
– Easy wiring from up/down/sides
– Suitable for European electric back box
– Suitable for surface or semi-flush mounting version
– DC12V to 24V power supply input
– With triple poles change-over contacts
– COM/NO/NC, 3A 30VDC UL listed switches

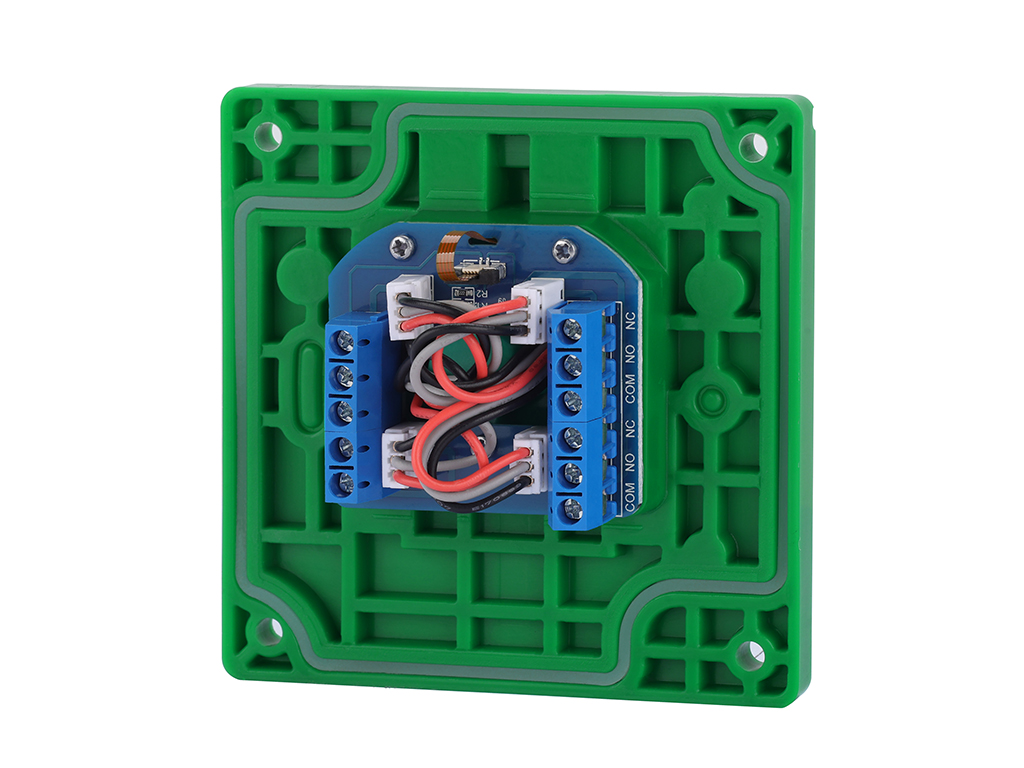

– With 11 UL listed screw terminal block
– Easy and fast installation
– OEM logo printing available
