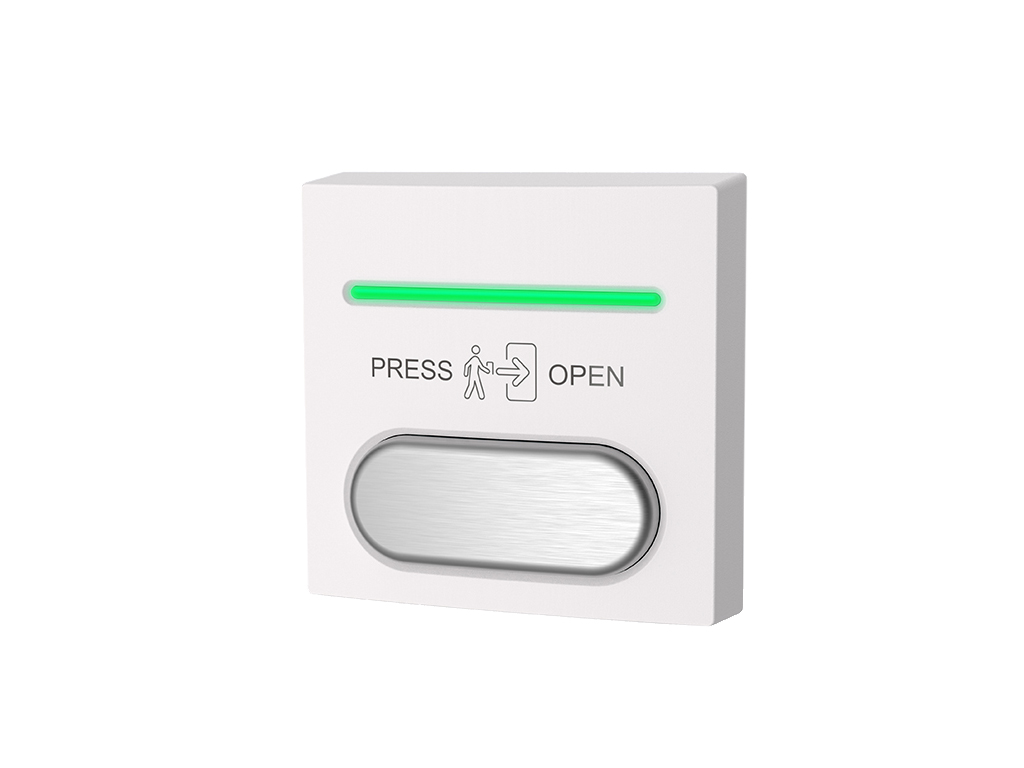

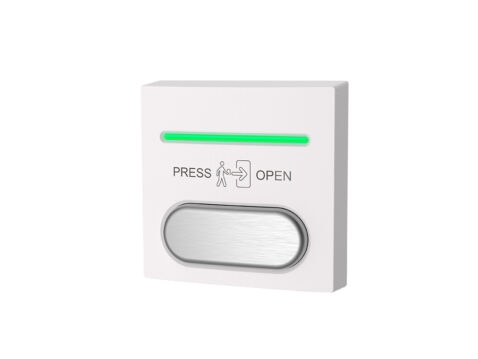

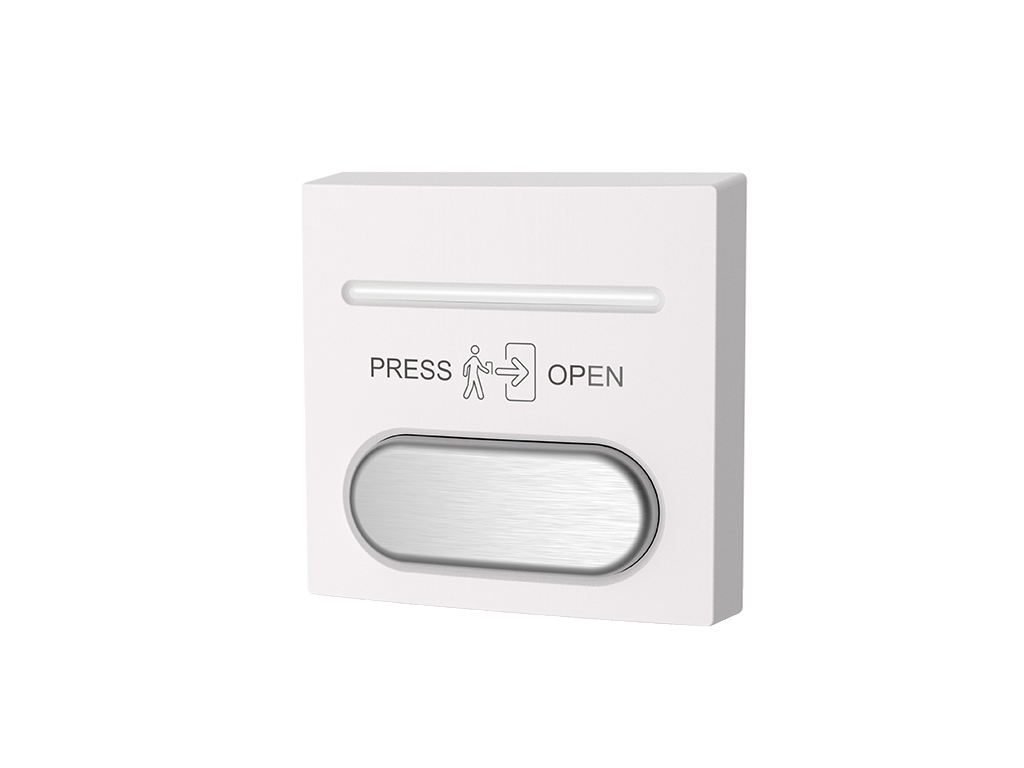

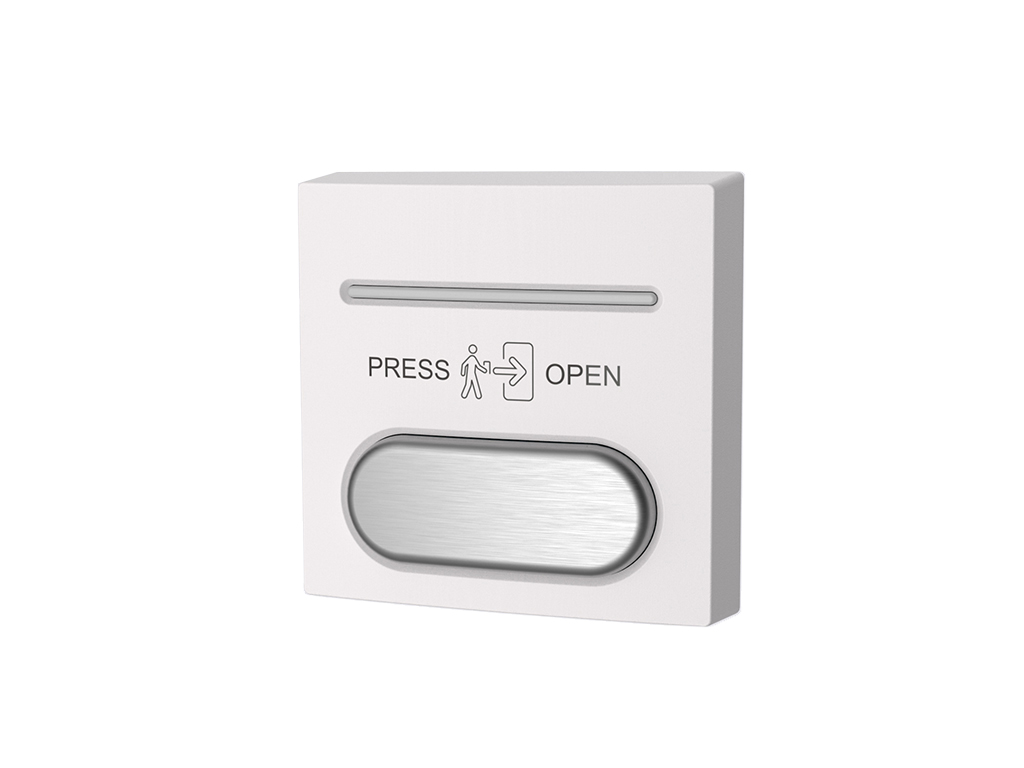

SMB-S003 white
Euro exit button
Stainless steel button, white color
Illuminated LED display
COM/NO/NC CONTACT
0.5A 125/250VAC
INT/EXT Control
LED stripe: red/green or white/green
Plug & play terminals
12/24 VDC
These modern and beautiful push buttons have illumunated stripe and 0.5A 125/250VAC NO/NC/COM contact, suitable for unlocking electrical locks, controlling automatic doors.

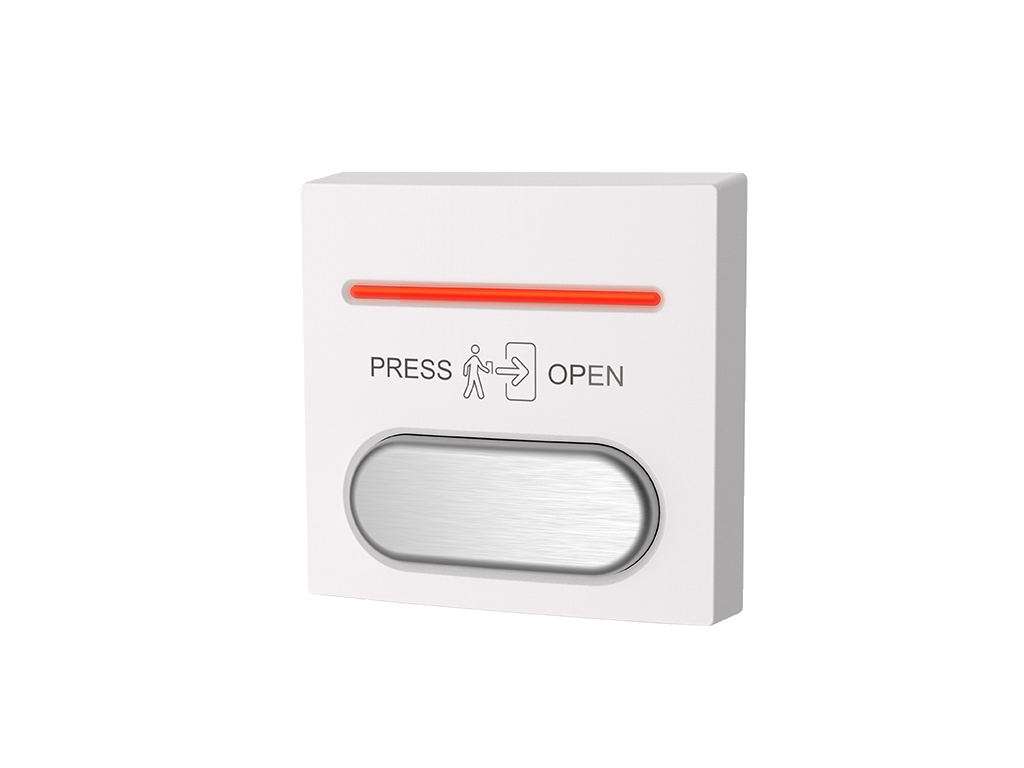

The clear color of red/green LEDs to indicate standby/operation status, are following by themselves or controlled by external systems, so suitable for the inter-lock systems.
The installation – and service- friendly has Plug& play terminals and fit on existing flush-mounted box.
Choice of white or silver version, other OEM color of wood grain, black, green are optional.
OEM logo and symbol are available
Design with built-in battery room, can be easily made suitable for wireless version if required.
EURO EXIT BUTTON,
Metal button, White color
NO/NC/COM Switches
for Lock System or Interlock System use
12VDC/24VDC Jumper Control
Internal/External Jumper Control
Internal/External LED control
Supper Shining Illuminated Stripe
6 LEDs with Red & Green
0.5A 125/250VAC
Operating Tem: -25℃-60℃.
Euro Electric Box Standard
Surface / Flush Mounting
Metal Push Design
for good protection of switch & PCB
Seven Screw Terminal output
Plug & play Terminals
Easy Installation
White, Black, Mat Silver, Wood grain optional
Symbol/Logo Printing Available
