SMB-M026R
SMB-M026R
IP68 waterproof mushroom button
5A 48VDC 300VAC output
Normally open and normally close switches
Screw terminal outputs
Option with green, red and black surface face

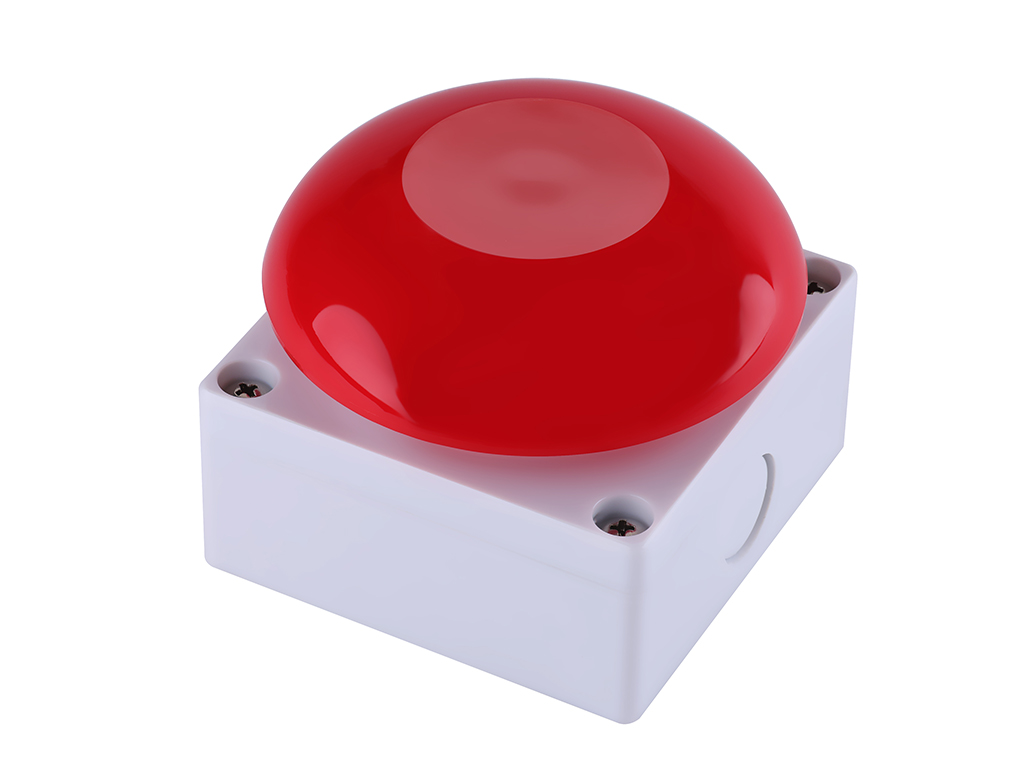

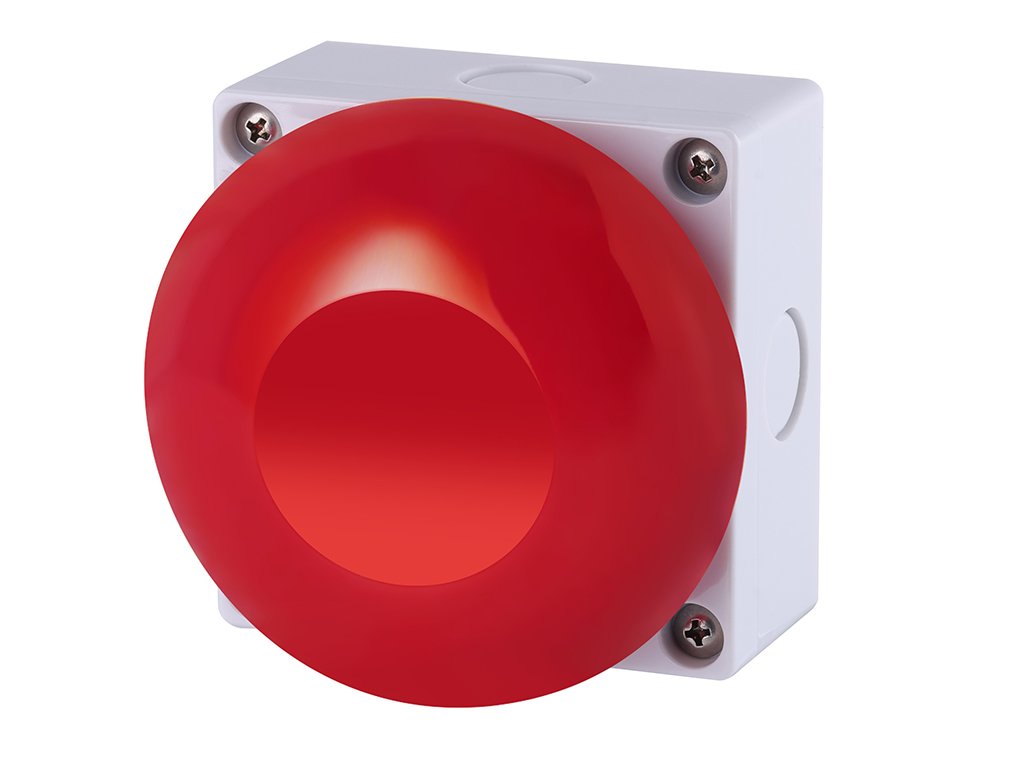

Waterproof mushroom button, known as foot and palm push button, has robust and
functional enclosure, can be operated by hand, fist or foot. The high degree of protection
(IP68) and high mechanical shock and vibration resistance are against dirt or water, ideal for
use in harsh environmental conditions. The excellent ergonomic and stylish design have a big
surface face and different colors, easy for quick and intuitive operation. Large operating range
and multiple momentary contacts with Ith 10A Ui600V switch can be installed in a broad range
of applications.
Key feature
– IP68 waterproof button
– Robust and vandalism enclosure with polycarbonate materials
– Green, red and black big surface push face

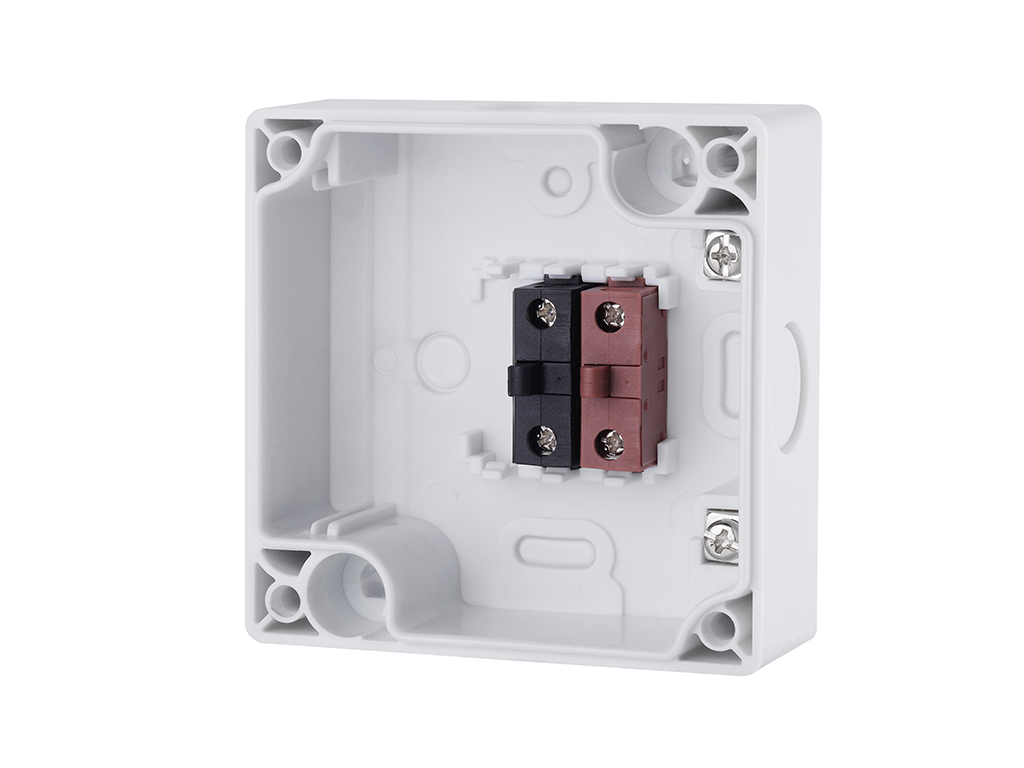

– Removable switches with screws terminal output for easy and fast wiring
– Multiple momentary switches with normally close and normally open contacts
– With 5A/300VAC 5A/48VDC output
– In-house design with wireless version and relay output optional
– In-house wireless module of SMB-T025 for cable free version (if required)
– In-house relay module of SMR-D009 with timer delay & toggle function (if required)
– Suitable for euro electric back box
– Easy and fast installation with surface waterproof mounting design
– With 3 blind holes for PG13.5 use for easy wiring from up/down/sides
– With breakout ports for cable tray use (no longer IP68)
– OEM logo printing, different symbol and color availab
