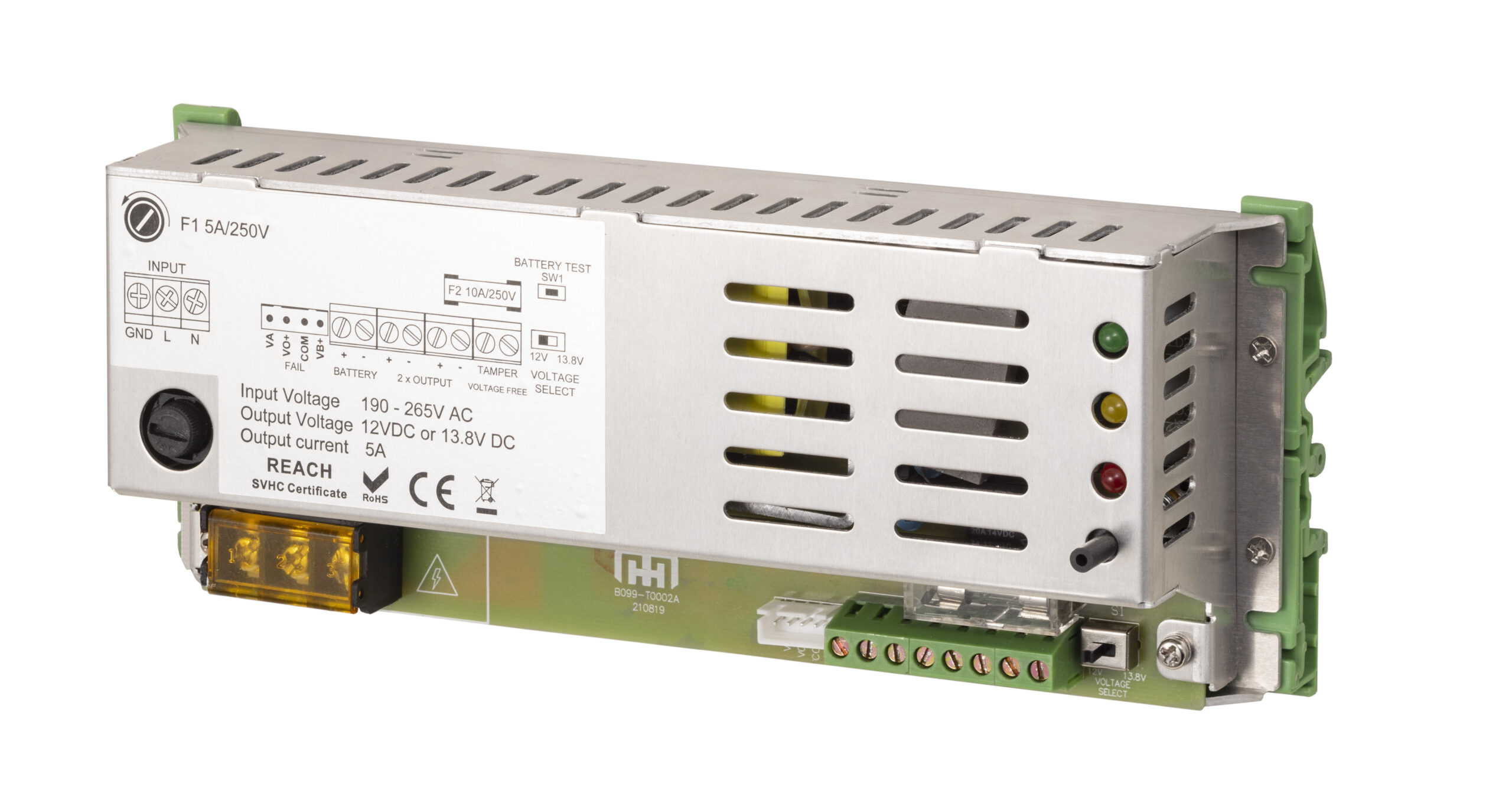

MH1250D

These DIN rail switch mode power supplies transform 230V to 12V=, deliver 1.5, 3, 5 or 10amps and are regulated. This ensures a constant output voltage.
Adopt 5000Hrs aluminum electrolytic capacitors have long life assurance and high ripple current
Equipped with LED indication, connection for a battery (emergency power supply), tamper contact and selector switch for 12V or 13.8V.

Optionally with a Fire PCB for connection to the fire alarm control unit
Optionally with PMS PCB for mains/output/battery monitoring for 5A and 10A version
Optionally with Fuse PCB with 5x1A or 5x2A output for 5A and 10A version

190-265VAC, 50-60Hz
Choice of 12V= 5A with selector switch for 12V or 13.8V
With LED indication to display status of mains, battery and output
With connection for emergency power supply
With tamper contact
A separate unit with DIN rail adapters
With removable mains/battery fuse protection
With low battery voltage protection
With low voltage/short circuit/overload/over voltage protection
With battery management system for 5A and 10A
With accessories kit (battery cables, self-lock zip ties)
Certified with Rohs, Reach, CE-EMC, CE-LVD
Operation temperature: -20 – 50℃
Storage temperature: -30 – 80℃
