MH1215PS

These switch mode power supplies transform 230V to 12V, deliver 1.5, 3, 5 or 10 amps and are regulated. This ensures a constant output voltage.
Adopt 5000Hrs aluminum electrolytic capacitors have long life assurance and high ripple current
Have high efficiency and low heat generation, so ideal to extend the life of power supply
Equipped with LED indication, connection for a battery (emergency power supply), tamper contact and selector switch for 12V or 13.8V, ideal for access control, fire and security alarm systems, CCTV monitoring.

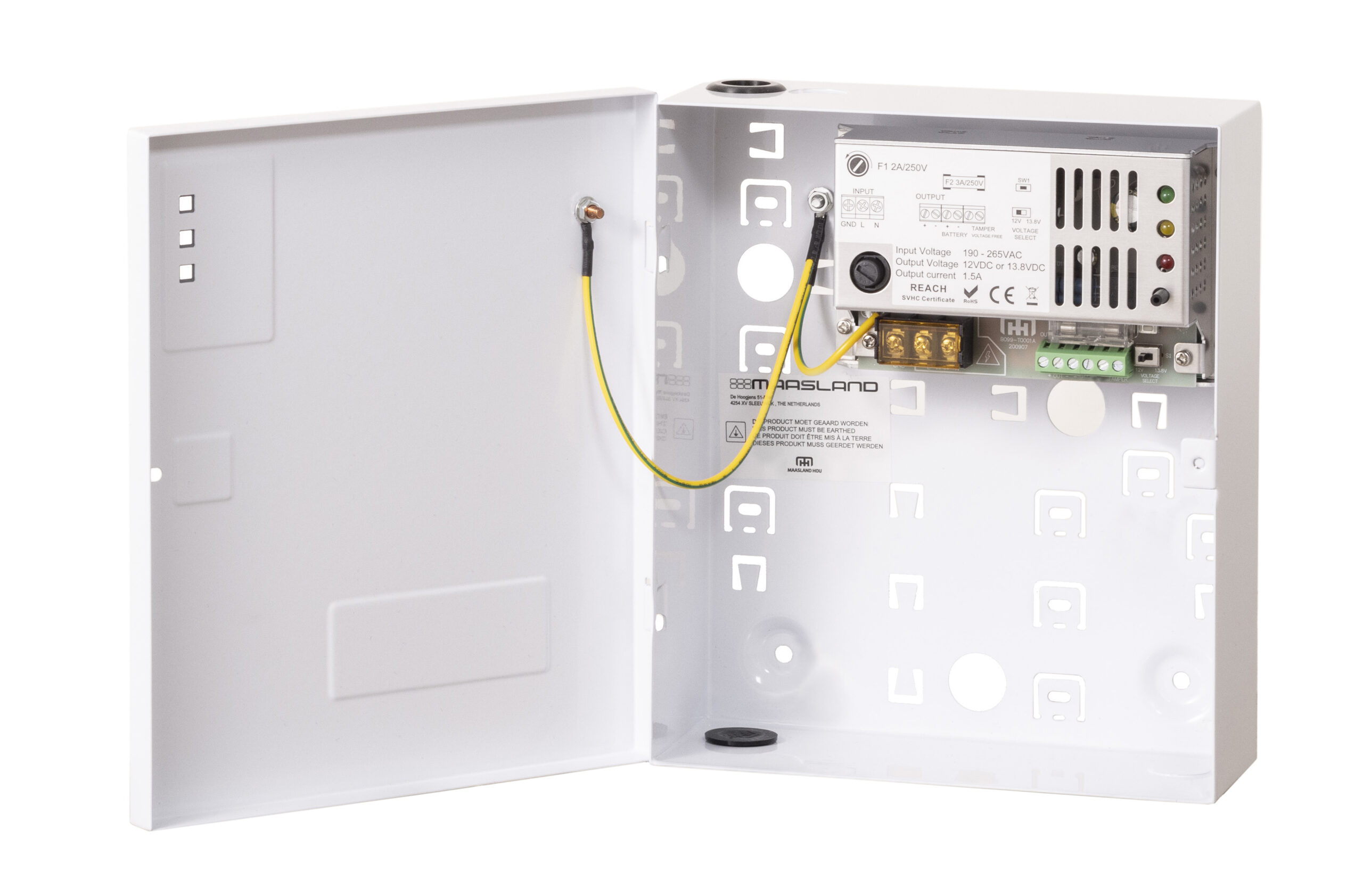

Choose between a model in a steel housing or a separate unit with optional DIN rail adapters.
Optionally with a Fire PCB for connection to the fire alarm control unit
Optionally with PMS PCB for mains/output/battery monitoring for 5A and 10A version
Optionally with Fuse PCB with 5x1A or 5x2A output for 5A and 10A version

190-265VAC, 50-60Hz
Choice of 12V= 1.5A with selector switch for 12V or 13.8V
With LED indication to display status of mains, battery and output
With connection for emergency power supply
With tamper contact
Choice of in a steel housing or as a separate unit with DIN rail adapters
With removable mains/battery fuse protection
With low battery voltage protection
With low voltage/short circuit/overload/over voltage protection
With accessories kit (battery cables, self-lock zip ties)
Certified with Rohs, Reach, CE-EMC, CE-LVD
Operation temperature: -20 – 50℃
Storage temperature: -30 – 80℃
